Tire Pressure Monitoring System (TPMS)

Pairing Instructions

Step 1:

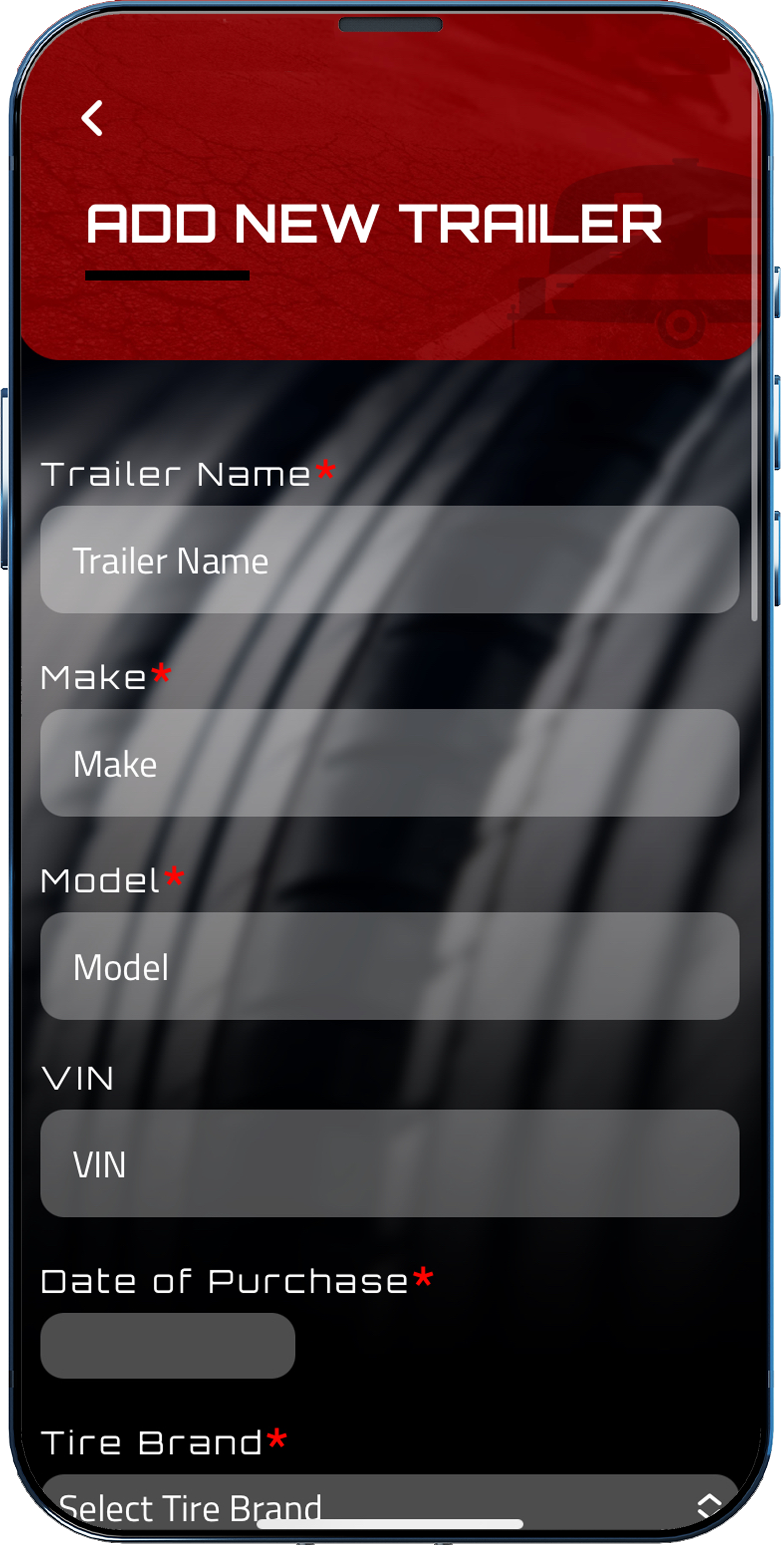

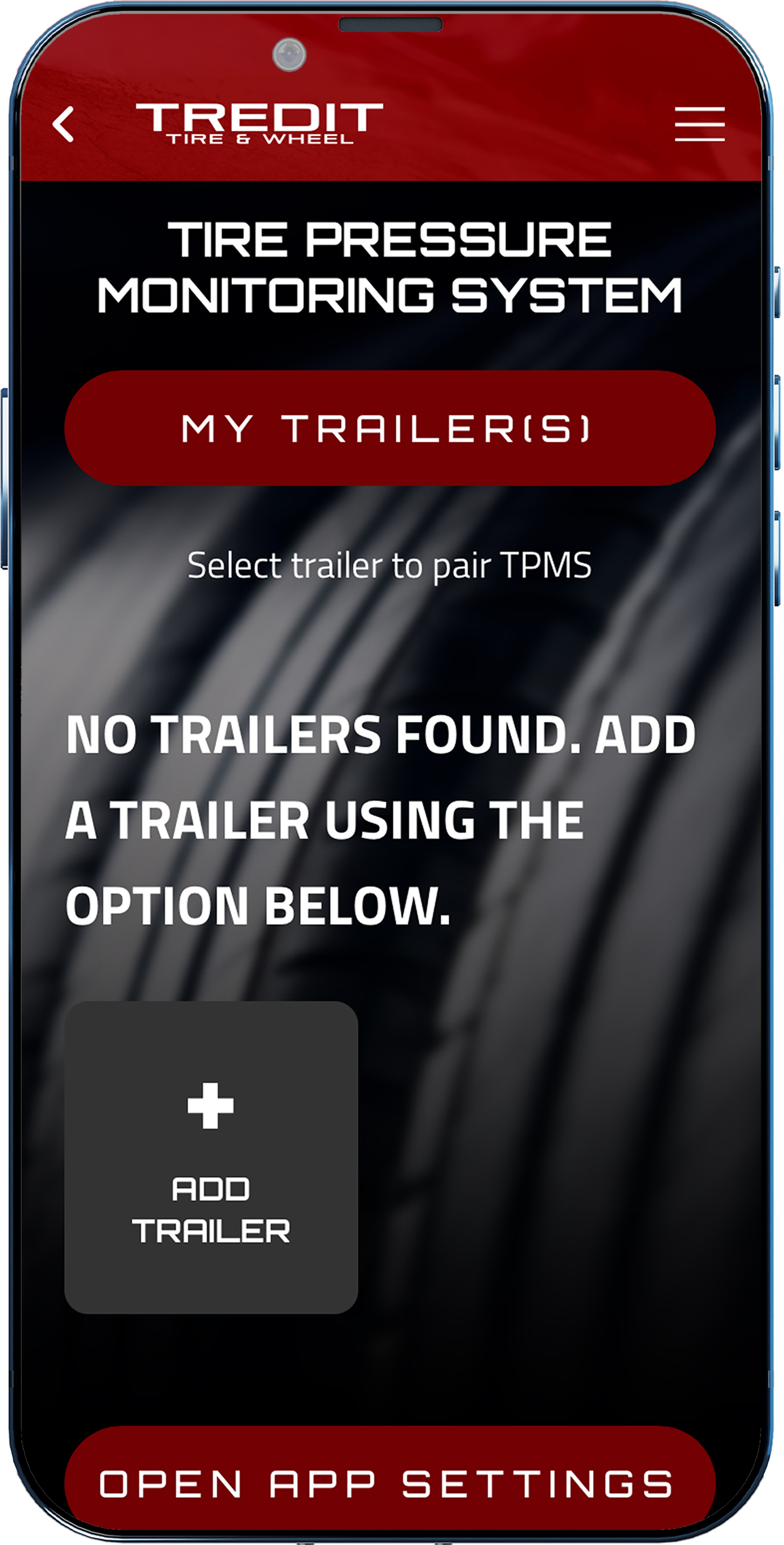

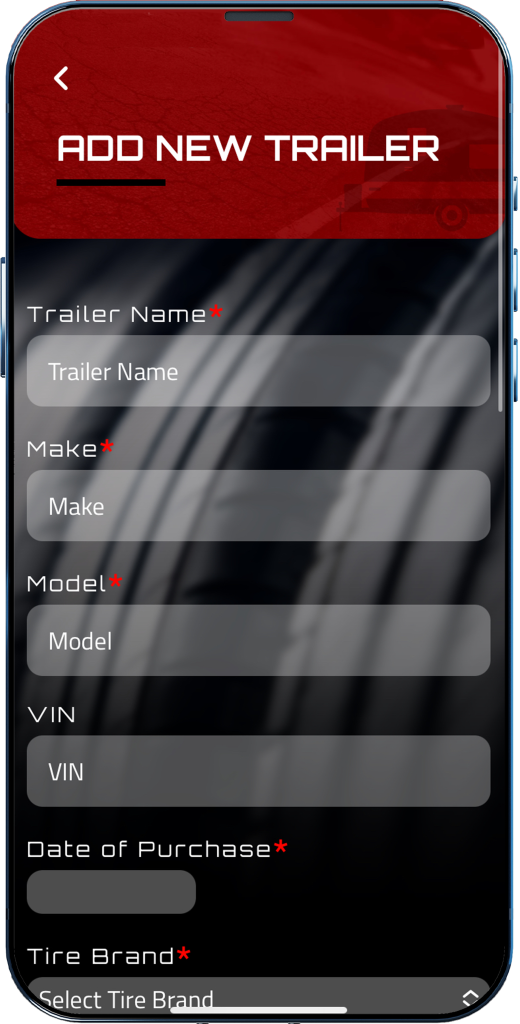

Tap + ADD TRAILER and enter your trailer/tire information. The app allows for multiple trailers to be added and saved to your account.

Step 2:

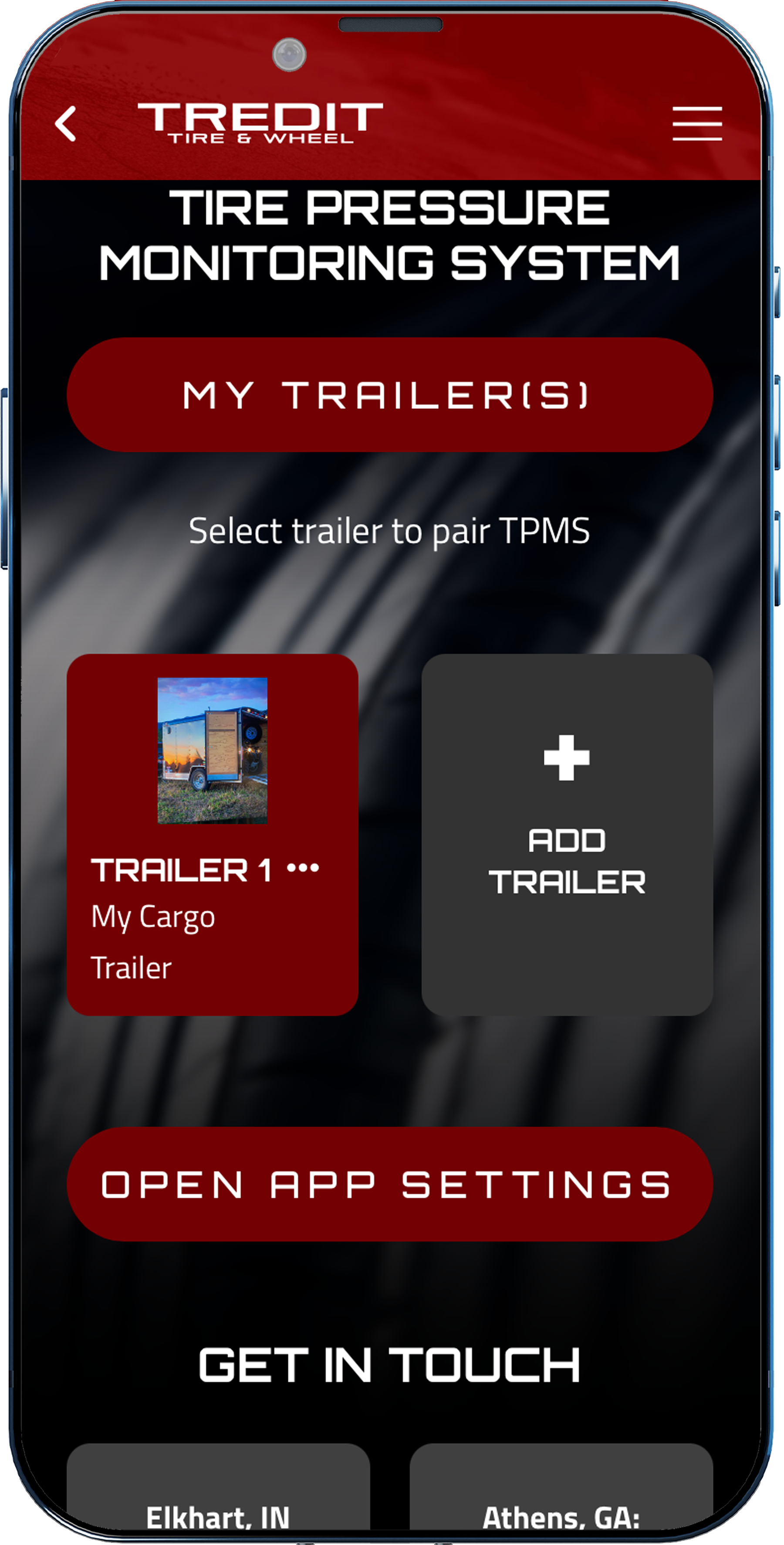

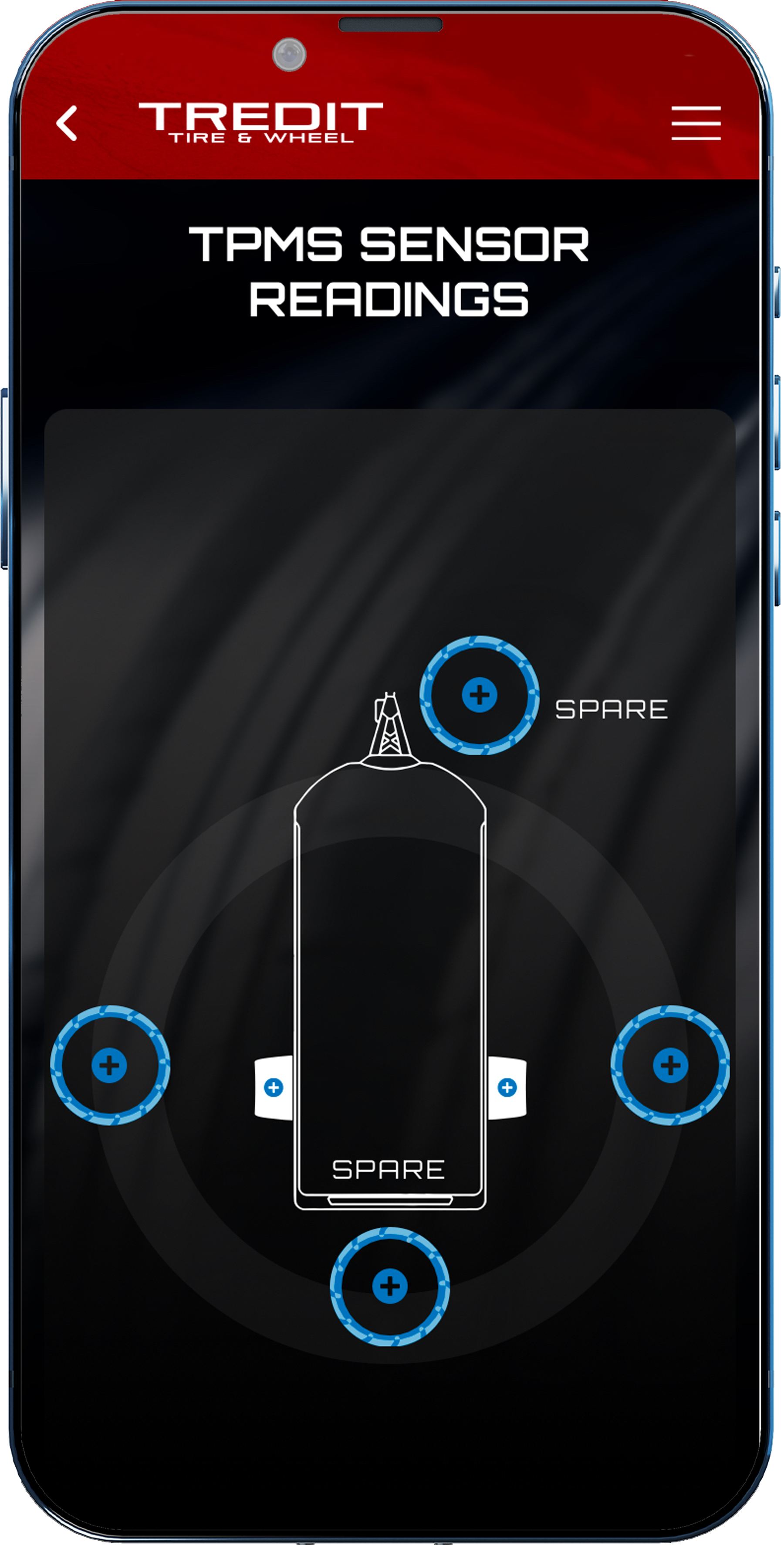

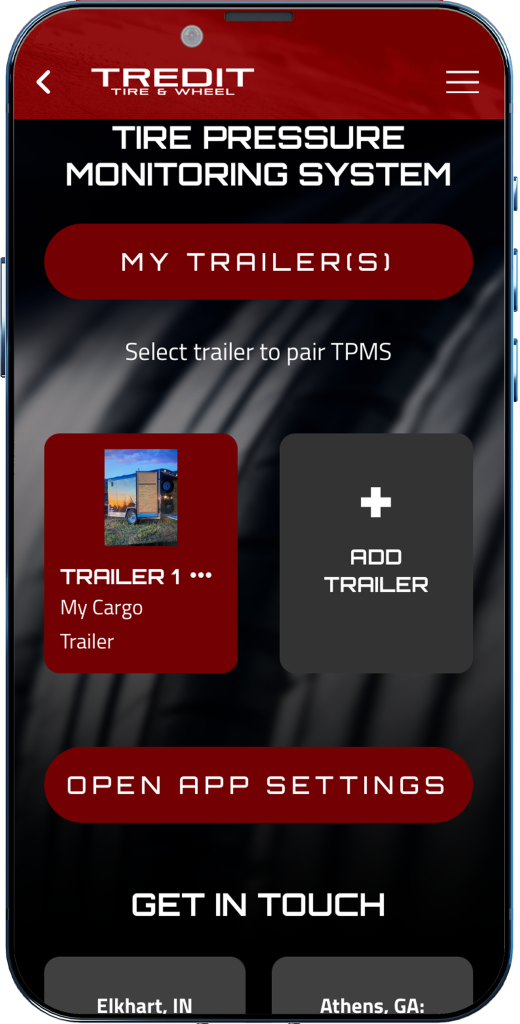

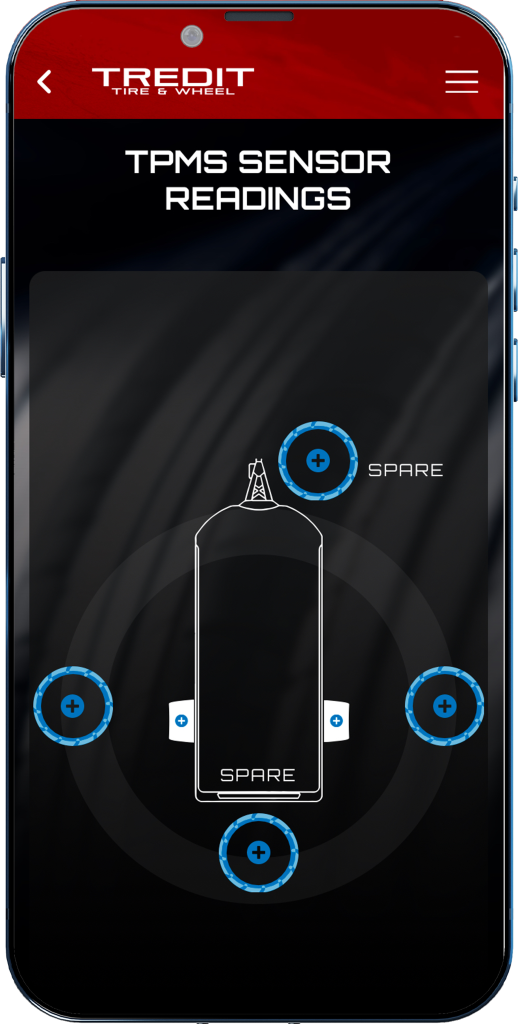

Once you have created/saved your trailer profile, select the trailer you wish to pair to (if there are multiple trailers saved). This will take you to your TPMS Sensor Readings.

Step 3:

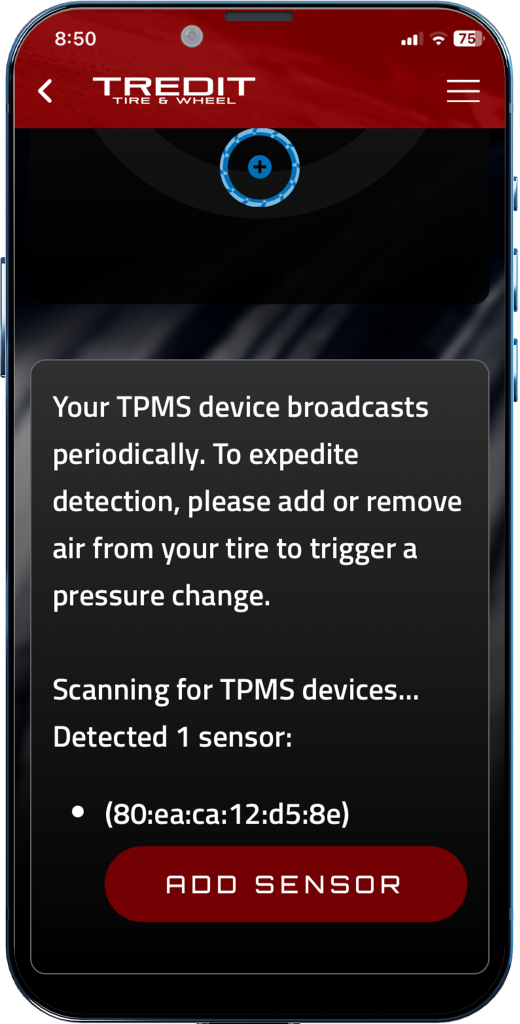

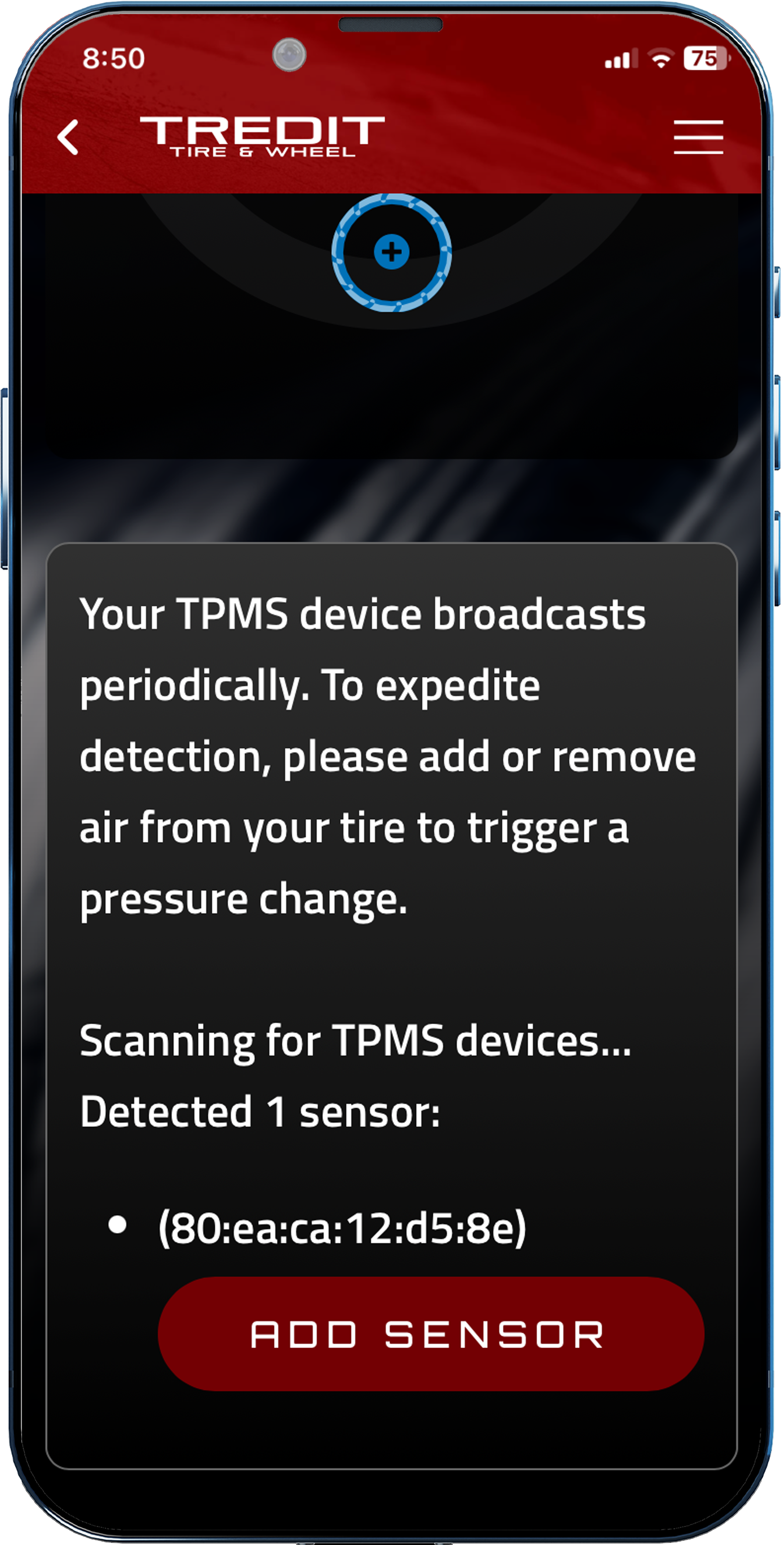

Make sure your phone’s Bluetooth is turned on. Tap the “+” icon next to the trailer diagram to begin scanning for TPMS sensor device.

On the initial set-up, there needs to be a small change in air pressure for the app to locate and connect to the TPMS sensor. This small air pressure change should make that sensor name pop to the top of the list for you to select and pair.

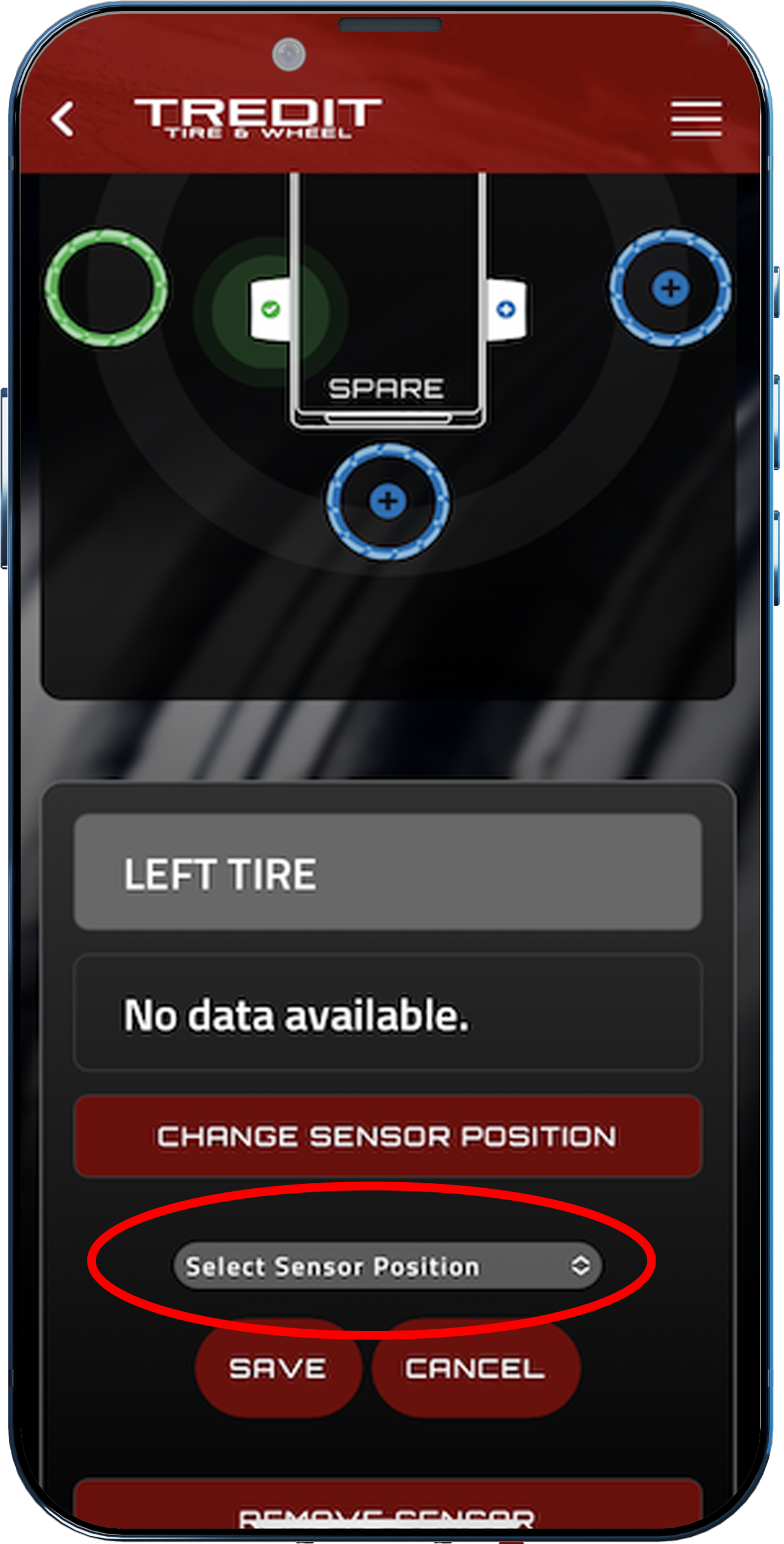

If you end up selecting/pairing the incorrect sensor next to the desired trailer placeholder, tap on the paired placeholder and select “Change Sensor Position” to relocate the sensor to the correct position.

Step 4:

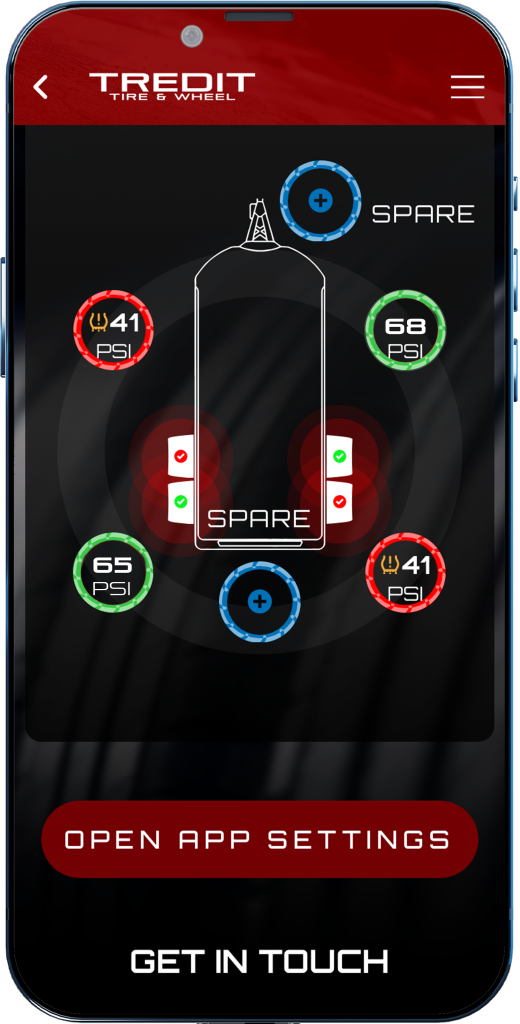

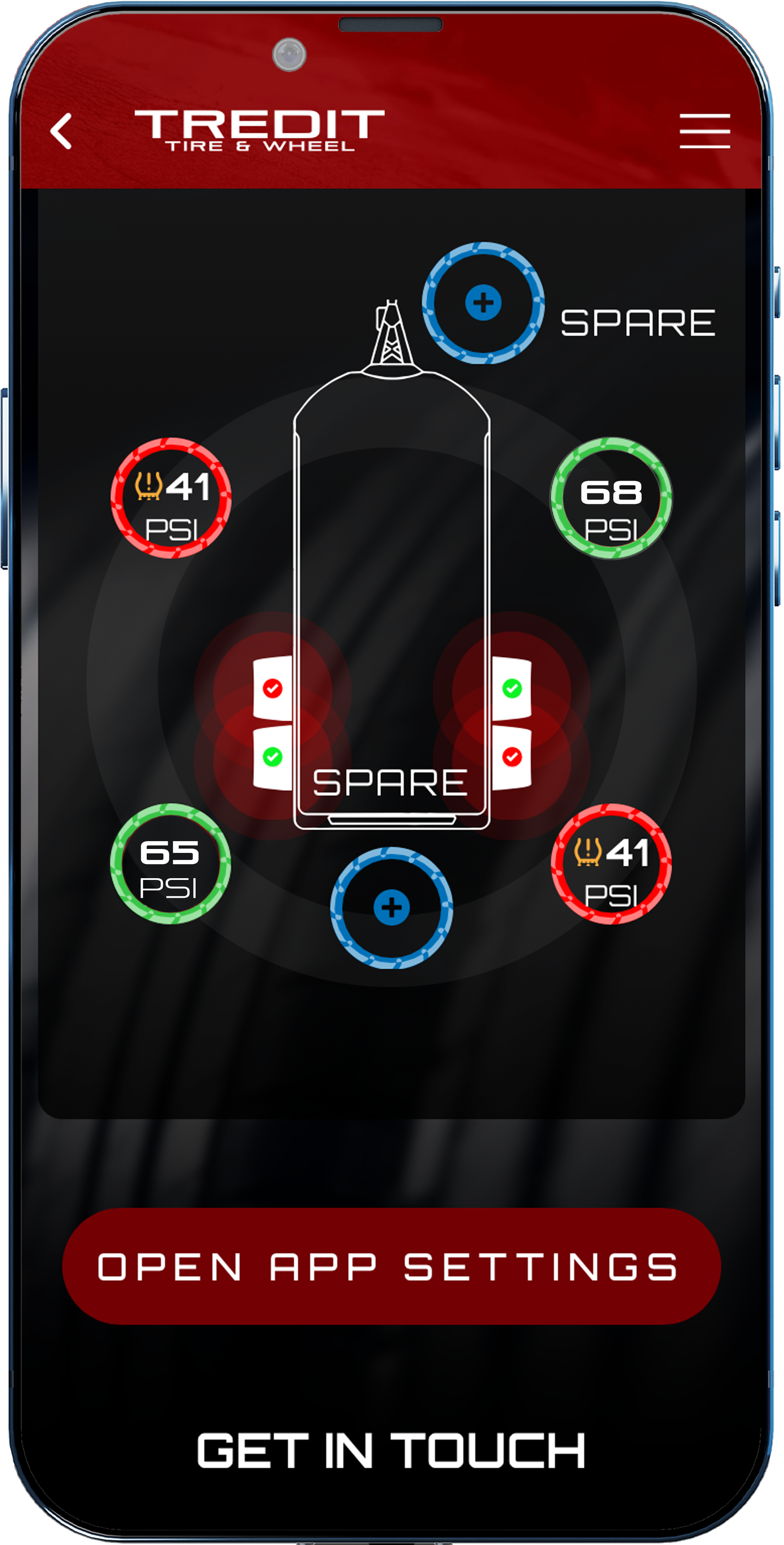

The checkmark indicates the sensors have been successfully paired.

The live PSI readings are shown adjacent to the trailer diagram. If enabled, a notification will be sent to your phone if the trailer tire PSI drops below it’s recommended PSI inflation range.

The rings around the PSI amounts indicate the live tire temperature status.

Green: Tire is within the recommended temperature range.

Yellow: Tire is at a moderate temperature level. Within this temperature level, you should consider pulling over to check the tires.

Red: Tire is at a high temperature and should not be in operation.
